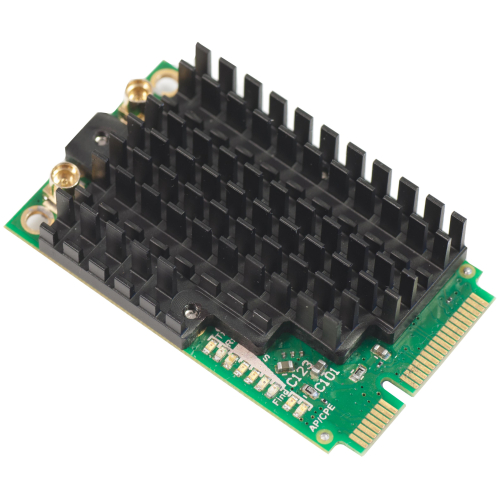

R11e-2HPnD
R11e-2HPnD is our new 802.11b/g/n Dual Chain high power miniPCI-e card, operating in full 2192-2732 MHz frequency. Ideally suited for the new RB912 series (Specific frequency range can be limited by country regulations), RB800 or our new miniPCIe adapters - RB14e/RB14eU Unit is equipped with two MMCX connectors
Product specifications
| Details | |
|---|---|
| Product code | R11e-2HPnD |
| Antenna header count | 2 |
| Can be used indoors | Yes |
| Can be used outdoors | Yes |
| Certification | FCC, IC |
| IP | IP00 |
| Max power consumption | 5 W |
| Storage size | 4 KB |
| Storage type | FLASH |
| Tested ambient temperature | -40C to +65C |
| Wi-Fi generation | Wi-Fi 4 |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz chip model | AR9582 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Wireless standards | 802.11b/g/n |
| Suggested price | $39.00 |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 29 | -100 |
| 11MBit/s | 29 | -94 |
| 6MBit/s | 30 | -96 |
| 54MBit/s | 25 | -80 |
| MCS0 | 30 | -96 |
| MCS7 | 24 | -79 |
